Product Details
＋
Features
- AWARDS: Rated the Pro Preferred Nailer for 9 years running (2014 - 2022) by Builder and Developer Magazine
- FASTENERS: Accepts 16º wire coil nails from 1-3/4" - 3" and 15º plastic coil nails from 1-3/4" - 2-1/4"
- LIGHTWEIGHT: Only 5.7 lbs for easy maneuverability
- SELECTIVE ACTUATION: Allows for quick changes between sequential and contact nailing with the flip of a switch
- EASY LOAD: Side load, tilt bottom magazine for fast and easy reloads
- TOOL-LESS DEPTH ADJUSTMENT: Depth adjustment to countersink or flush drive into a variety of materials
- NO MAR NOSE CAP: Protects material from accidental marks
- AIR DEFLECTOR: Adjustable air deflector directs the air exhaust in any direction
- RECOMMENDED: Use Metabo HPT Nails for best results
- COMPLIANT: Safety standards for pneumatic nailers in the United States
What's in The Box

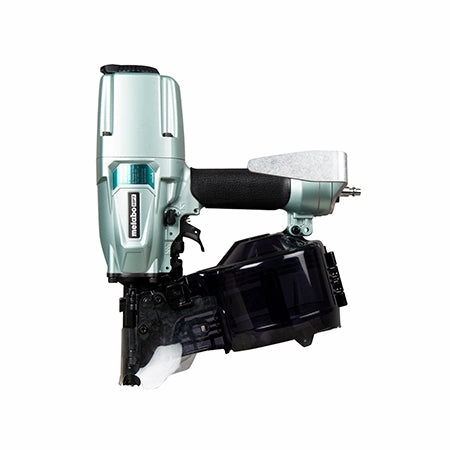

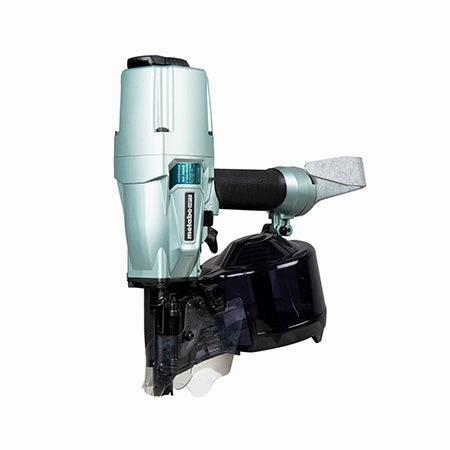

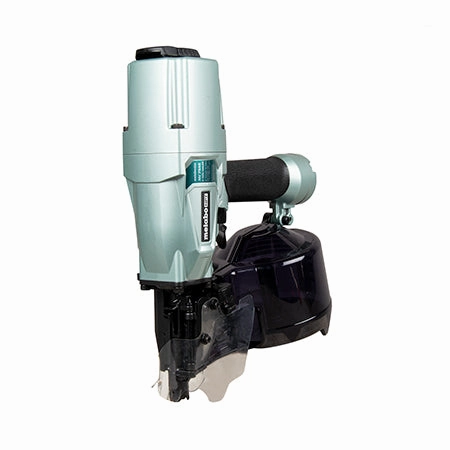

- 3 Inch Siding Light Framing ( Sheathing ) Coil Nailer | Metabo HPT (NV75A5)
- Aluminum Rafter Hook (889661M)
- No Mar Nose Cap (883106)
- Safety Glasses (875769)
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | NV75A5 |
| Brand | Metabo HTP |
| Power Source | Pneumatic |
| Nail Length (Plastic Collated) | 1-3/4 in. - 2-1/4 in. |
| Nail Length (Wire Collated) | 1-3/4 in. - 3 in. |
| Nail Diameter (Wire Collated) | .099" - .131" |
| Nail Diameter (Plastic Collated) | .090 in. - .099 in. |
| Actuation | Selective (Sequential/Contact) |
| Magazine Angle | 16-degree Wire - 15-degree Plastic |
| Magazine Loading | Side Load - Tilt Bottom |
| Nail Capacity | 200-300 |
| Operating Pressure | 70-120 PSI |
| Dry-fire Lockout | No |
| Depth Adjustment | Tool-less |
| Adjustable Exhaust Port | Yes |
| Jam Clearing | Open Nose Design |
| Rubber Grip | Yes |
| Dimensions (LxWxH) | 10-11/16 in. x 5-3/16 in. x 13-3/8 in. |
| Weight | 5.7 lbs |
