Aiko Battery SS Pipe Clamp Tool (2-1/2"-4") | Model : ED-60100

Specifications :

• Model : ED-60100
• Max. pressing force : 80 KN
• Pressing Range : Thin Wall Stainless steel pipe and copper pipe : 60-108 mm(2" - 4")
• Hydraulic Oil : Shell Tellus T15# S2V HV15
• Oil Capacity : 250 ml
• Ambient Temperature : -10˚C ~ 40˚C

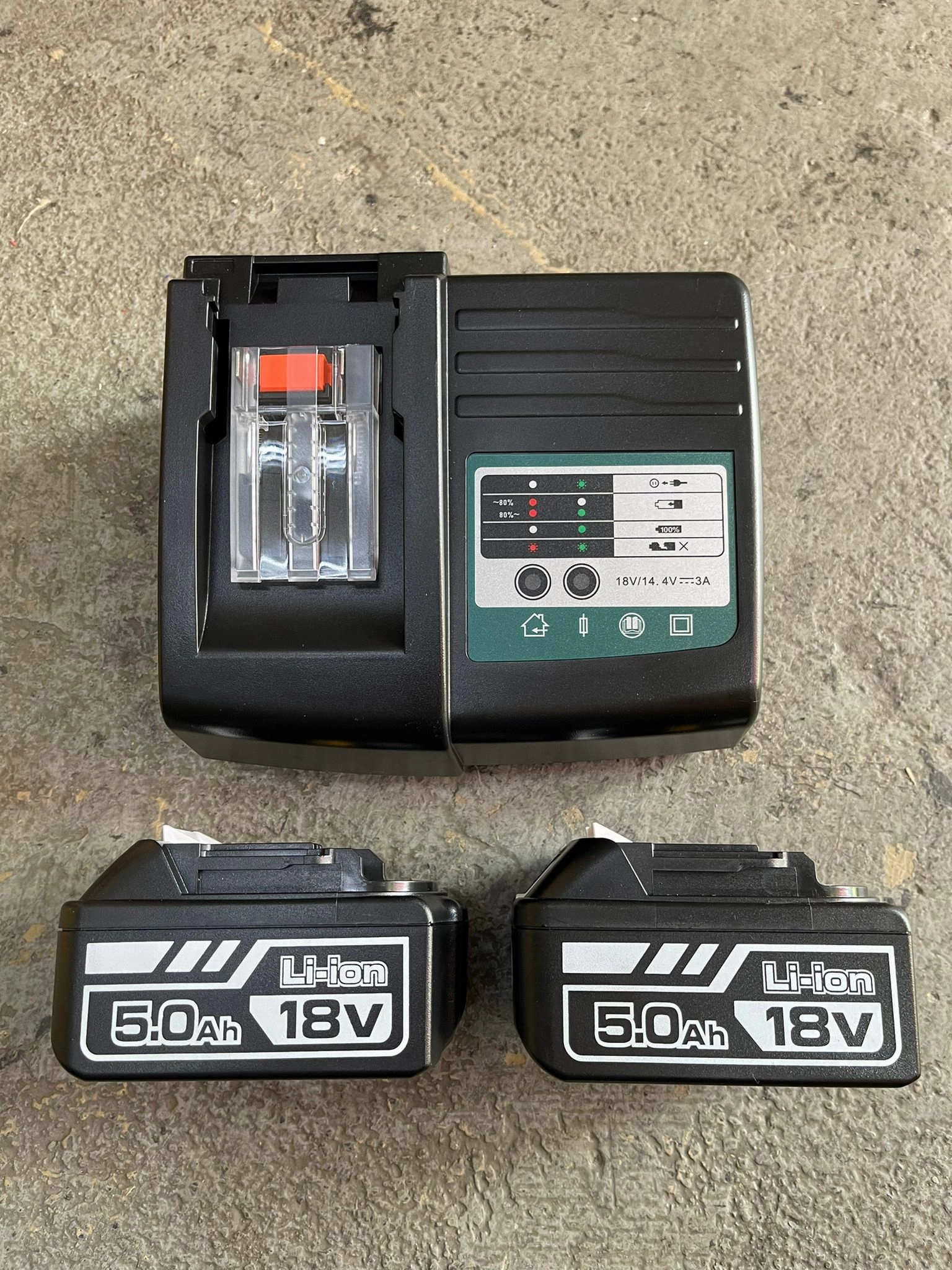

• Voltage : 18V
• Capacity : 5.0 Ah
• Time / Press : 18 - 25 s (Depend on the dia of pipe)
• Time / Charger : Approx , 350 times (DN20)
• Voltage : 240V
• Frequency : 50 Hz
• Charging Time : Approx . 100min
• Weight : 12 kg
• Dimension : 620 x 360 x 84 mm

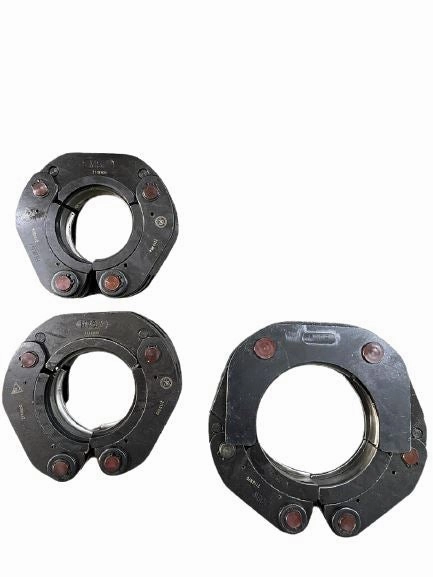

• Come with Ring Jaw : 67, 76.1, 108mm
